Radiant • BELTA Series • Single Phase

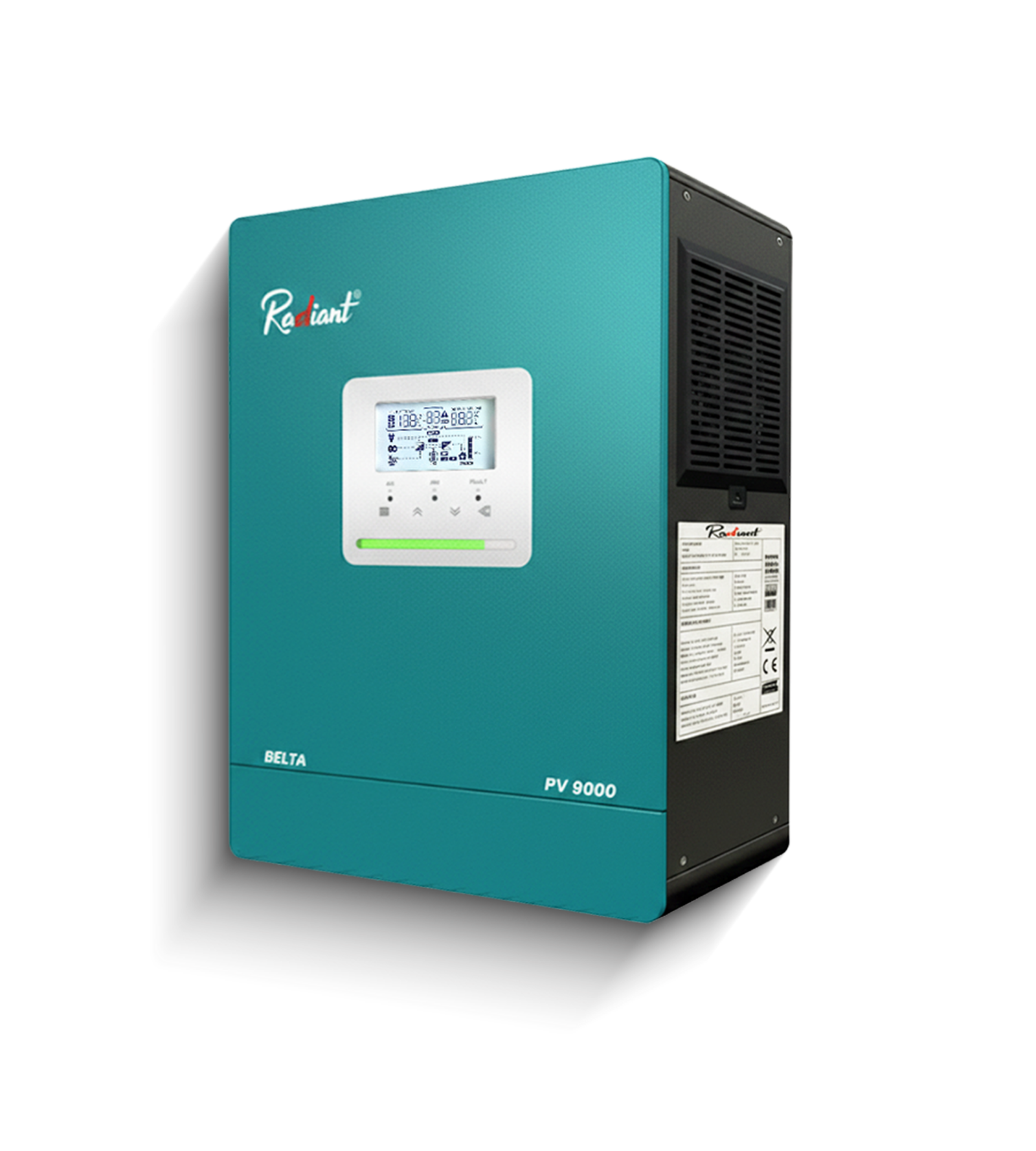

Radiant BELTA PV 9000 Inverter
The BELTA PV 9000 is a single-phase inverter designed for reliable solar power conversion, with 9,000W maximum PV input, 500Vdc maximum DC voltage, 60–450Vdc MPPT range, and up to 97% conversion efficiency.
BELTA PV 9000 / BELTA-6KW
Built for single-phase residential and light commercial solar applications, the Radiant BELTA PV 9000
provides strong PV handling, grid-tied operation, and off-grid support in a compact body. With 2 MPPT
trackers, 18A maximum input current, 220/230/240VAC nominal output voltage, and IP21 protection, it is
suitable for Pakistan’s common solar installation requirements where reliable voltage, efficiency and
compact installation matter.
BELTA-6KW Model
9000W PV Input
500Vdc Max DC
2 MPPT Trackers
97% Efficiency
Single Phase
Further information
Quick highlights
- Rated power: 6KVA / 6KW
- Maximum PV input power: 9000W
- Grid feeding: 3000W
- MPPT voltage range: 60–450Vdc
- Maximum conversion efficiency: 97%
Key specs
| Model | BELTA-6KW |
|---|---|
| Phase | 1-Phase In / 1-Phase Out |
| Max DC voltage | 500Vdc |
| Start-up voltage | 90Vdc |
| MPPT trackers / current | 2 / 18A |
| Net weight | 5.5 KG |
Technical specifications
| Specification | BELTA PV 9000 / BELTA-6KW |
|---|---|
| Model and power | |
| Model | BELTA-6KW |
| Rated power | 6KVA / 6KW |
| Phase | 1-Phase In / 1-Phase Out |
| PV input and grid-tied operation | |
| Maximum PV input power | PV 9000 / 9000W |
| Grid feeding | 3000W |
| Maximum DC voltage | 500Vdc |
| Start-up voltage | 90Vdc |
| MPPT voltage range | 60–450Vdc |
| MPPT trackers / maximum input current | 2 / 18A |
| Grid output AC | |
| Nominal output voltage | 220 / 230 / 240VAC |
| Output voltage range | 195–250VAC ±3 |
| Nominal output current | 26A |
| Power factor | >0.99 |
| Efficiency | |
| Maximum conversion efficiency DC/AC | 97% |
| Off-grid AC input | |
| AC start-up / auto restart voltage | 170–280VAC |
| Acceptable input voltage range | 170–280VAC |
| Frequency range | 50Hz / 60Hz auto sensing |
| Maximum AC input current | 26A |
| General and physical | |
| Dimensions D×W×H | 361 × 278 × 106 mm |
| Net weight | 5.5 KG |
| Environment | |
| Humidity | 5% to 95% relative humidity, non-condensing |
| IP degree | IP21 |
| Operating temperature | -10°C to 50°C |
